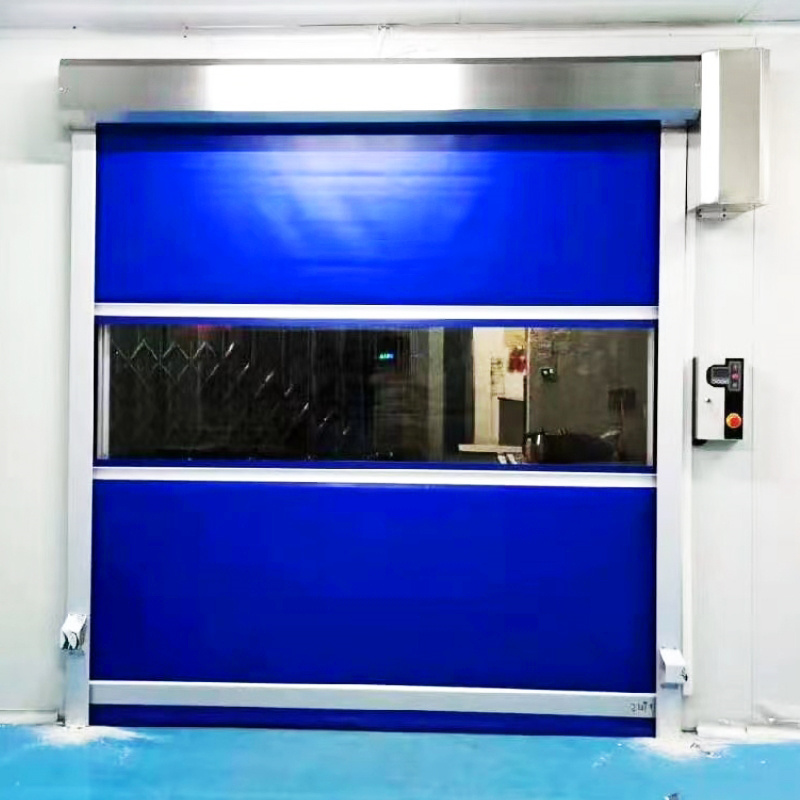

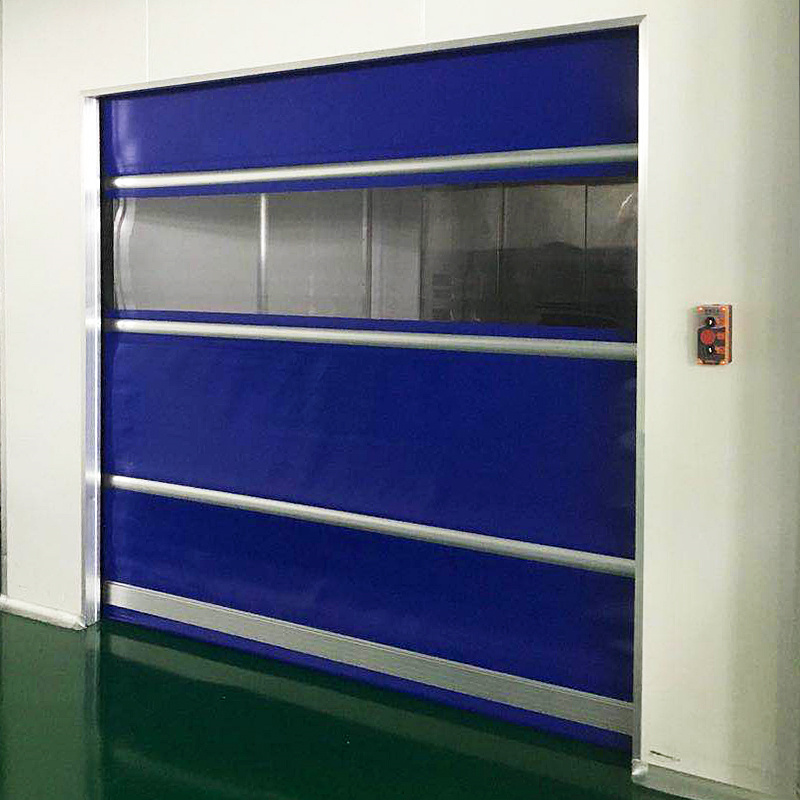

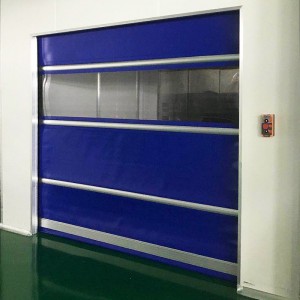

Fast PVC High-Speed Roller Shutter Doors for Factories

Short Description:

Fast rolling door, also known as fast door, Pvc fast door, is often used in clean industrial plants with efficient operation, suitable for frequent entry and exit and internal cleaning The requirements of the logistics channel area are widely applicable to automobile manufacturing, medicine, electronics, clean workshops, purification workshops, cigarettes, printing, textiles, supermarkets, etc.

Send email to us

Product Detail

Product Tags

Product Detail

Type	Servo high speed door		Tubular motor high speed door
	Low configuration	High confiquration
Max. size	DW4500*DH4500	DW4500*DH4500	DW6000*DH5000
Min. size	DW1600*2250	DW1600*2250	DW1600*2250
Open speed	Max.1.2m/s	Max.1.2m/s	1.8m/s(adjustable)
Close speed	0.6m/s	0.6m/s	0.6m/s(adjustable)
Wind load resistance	300N/㎡（≤Force 7）	300N/㎡（≤Force 7）	300N/㎡（≤Force 7）
Noise Level	12dB	12dB	12dB
Power	0.75kw,1.5kw	1.5kW	0.75kw,1.5kw
Operating temperature	-35 ~ 55°C	-35 ~ 55°C	-35 ~ 55°C
Opening Frequency	60 times hour	60 times hour	60 times hour
Curtain color	Red ,Blue ,Yellow ,Orange ,Gery
Application	Automotive, Electronics, Logistics, Food, Electronics, pharmaceuticals, Traditional, Manufacturing and other Industries.
MOQ	1 Set
OEM	Accepted

Features

1. Rail,lower beam and windproof strip are manufactured with high-quality aluminum alloy profiles with beautiful shape.
2. Use servo motor,servo control and encoder limit.The door body operates stably,the switch speed of closing and opening is fast,to be specific,less than 0.3s,and generally no noise of motor braking occurs.Upon operations of hundreds of thousands of times,the limit error is less than 2mm.
3. Be equipped with wireless safety air bag and infrared protection system.return quickly to fully open state in the event of people or objects when the door body is moving down.have good safety performance.
4. Anti-collision derailing protection.
5. Geomagnetic loop or pull a rope for opening is an option in terms of the users requirements.
