Mechanical Door Cover Dock Straightener With Sealed Loading And Unloading Truck

Short Description:

It is composed of a front frame and a rear frame made of aluminum profiles, which are connected to each other by a bracket. The frame structure is wrapped with reinforced polyester fabric. When the vehicle is parked incorrectly, the sides and top of the door seal will retract due to squeezing. The top will rise automatically at this time. This avoids damage to the loading and unloading door seal of the vehicle. The front frame fixed wall has two layers of fabric-reinforced material.

Product Detail

Product Tags

Product Detail

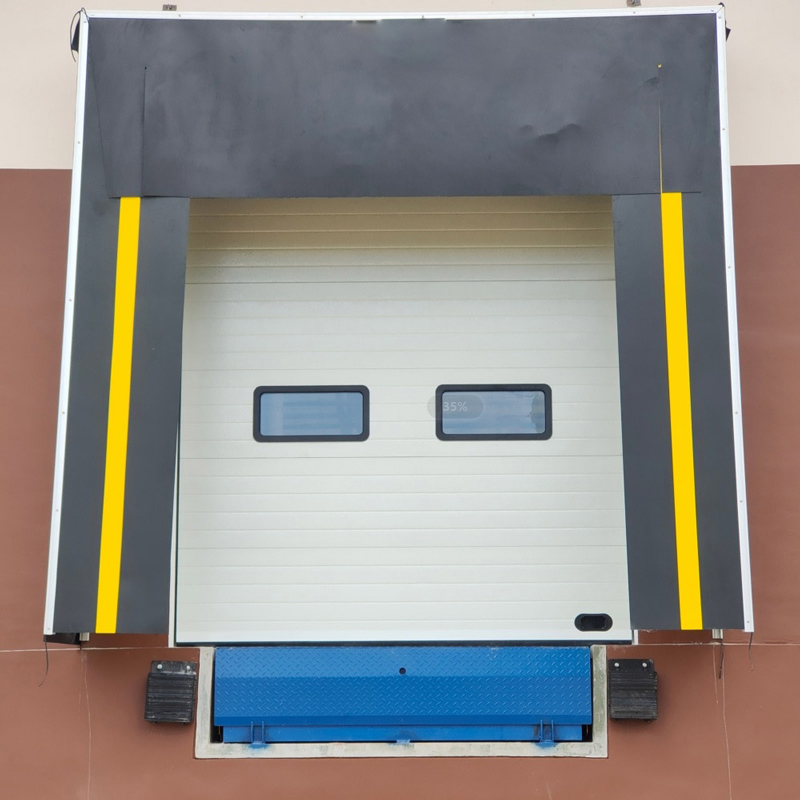

Product name Mechanical Dock Shelter
Size 3400*3400mm or customized
Color Standard color is black, or customized
Material polyester fiber, aluminum alloy and galvanized square pipe
Adjustable height rang 1000mm
Operating temperature rang -35ºC-70ºC


The front sealing curtain consists of three pieces of 3 mm thick high-density black polyester with a yellow reverse bar.The surrounding sealing curtain is composed of 0.8 mm thick high-density polyester fiber.

When the truck is docked , the three sealing linings form a flap-like seal on the outside of the truck compartment. The frame is made of galvanized steel pipe and aluminum alloy with spring balance for better impact resistance.

Wear-resistant industrial base cloth material, performance is relatively stable.

The door seal seals the goods safely.good sealing, at low temperature.It can also keep flexibility.

The installation of the door seal is simple and flexible,and Take up less space,for goods.And parking belts for loading and unloading vehicles.

Applicable to all kinds of industrial plants,Logistics center,workshop and warehouse equal occasion


1. How can I know the price exactly?
Re: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

2. Are you trading company or manufacturer?
A: We are factory.

3. What is your MOQ?
Re: No limit based on our standard color.Customized color need 1000sets.
